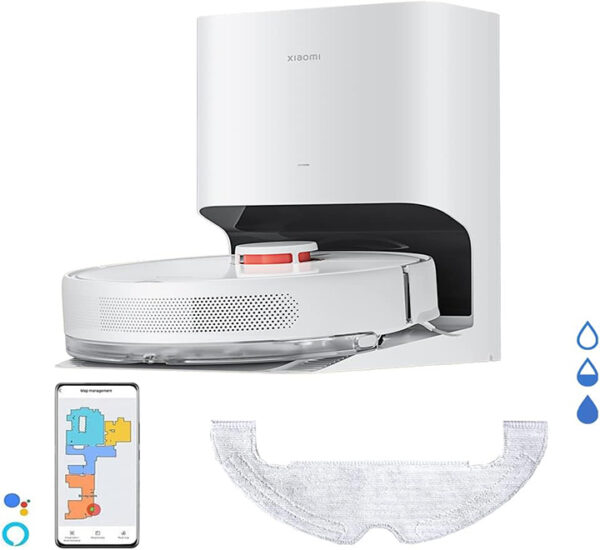

Xiaomi Robot Vacuum X10 UK

Auto-Emptying Station
Product Model: JCZ2201
Product Dimensions: 397 × 285 × 384 mm
Power Specifications: Input Voltage: 220–240 V, Frequency: 50/60 Hz
Output Voltage: 20.0 V, Current: 1 A
Rated Power: 1000 W
Robot Vacuum
Product Name
Robotic Vacuum Cleaner
Model
B102GL
Product Dimensions: 353 × 350 × 98.8 mm
Battery
Rated Capacity: 4800 mAh
Nominal Capacity: 5200 mAh
Charging Time
Approximately 6 hours
Weight
Robot Vacuum Weight: 3.3 kg
Weight with Accessories: 7.4 kg
Voltage
Rated Voltage: 14.4 V
Rated Power: 46 W
Package Contents
– Robot vacuum x1
– Dust collection dock x1 (With dust bag pre-installed)
– Main brush x1 (Pre-installed)
– Brush cover x1 (Pre-installed)
– Replacement dust bag x1
– Dustbin x1 (Pre-installed)
– Mop pad x1
– Water tank x1
– Side brush x1
– Cleaning tool x1
– Power cable x1
– User manual x1

Sensor List
– LDS laser sensor for distance and mapping (360°, white material 0.1–6m, black material 0.1–4m)
– IMU sensor for motion status detection (Acceleration ranges ±2g/±4g/±8g/±16g; Gyroscope ranges from ±125°/s to ±200°/s)
– Drop sensor for detecting steps and drops (Black/grey carpet >15mm; light grey tile >45mm; pure white >80mm)
– Wheel suspension detection for identifying if the vacuum-mop is suspended (0&1)
– Infrared sensor for communication between the vacuum-mop and base (<10cm)
– Infrared sensor for vacuum-mop and charging dock positioning (<5m)
– Air pressure sensor for testing dust collection capacity and blocked ducts (300–1250hPa)
– Hall sensor for verifying the installation of dustbin, water tank, and cloth (Operating Point ±37Gs; Releasing Point ±25Gs)
